UPSET FORGING PARALLEL THREAD

SYSTEM

1. Description

(1) GD-150 Upset forging machine

Working range:  12mm- 40mm

Motor power: 4.0KW

we use GD-150 to forging the end of rebar.

The reducing coupler could link different size of steel bar whose diameter from 12mm to 40mm
The upset forging parallel thread and Rib peeling roll stamping system all have such reducing coupler.

We have many related products: rebar splicing, rebar mechanical couplers, coupler rebar,

rebar splices, bar coupler, bar splice

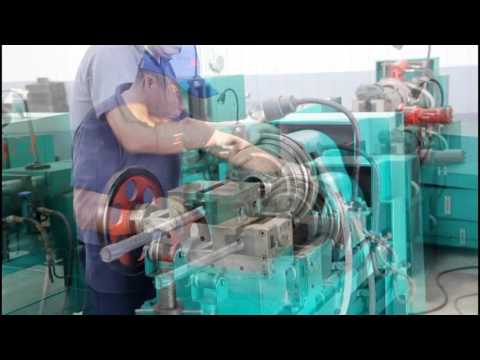

(2) GZL-45 threading machine

Working range:  12mm- 40mm

Motor power: 3/2.4KW

we use the GZL-45 to threading the end of rebar.

Rebar coupler have white & black surface, it can connect rebar diameter from 12mm to 40mm.

The tensile strength of rebar connector is not less than 627MPA,

and the tensile strength of super coupler can be reach 800~900MPA

2. Working principle

1. First, use GD-150 to forge the end of rebar;

2. Second, use GZL-45 to process thread on the forged end of rebar;

3. Third, use parallel thread coupler to abutting joint two threaded ends of rebar.

3. Advantages

1, Adopts upset forging parallel thread connection technology;
2, Wide working range: Adaptable for 12mm-40mm same diameter, different diameter, bending, new and old, advance covered up rebar of GB 1499, BS 4449, ASTM A615 or ASTM A706 standard.
3, High strength: Stronger than the reinforcement bar and guarantees bar break under tensile stress(tensile strength of connection point =1.1 times of connected bar's specified tensile strength). It can satisfy the requirements stipulated in the Chinese standard JGJ107-2003, JG171-2005.
4, High efficiency: Upset forging and threading one joint only needs no more than one minute, and handy operation and quick link.
5, Environmental protection and economy profit: No envirement pullution, can work all day, not affected by weather, economize energy source and bar material.

4. Technical data of steel upetting tensile test rebar coupler

Steel bar  diameter(MM)	Outer diameter  of coupler (MM)	Length of  coupler (MM)	Size of thread (MM)
12	20	30	M14*2.0
14	22	34	M16*2.0
16	26	40	M20*2.5
18	29	44	M22*2.5
20	32	48	M24*3.0
22	36	52	M27*3.0
25	40	60	M30*3.5
28	44.5	66	M33*3.5
32	50	72	M36*4.0
36	56	80	M39*4.0
40	62	90	M45*4.0

5. Certifications

RFQ

1. How many set machine a 20 foot container can put?

4sets Upset forging parallel thread machine. Total 10 wooden cases.

2. How can I know the quality of JBCZ rebar coupler?

We can send you FREE SAMPLE to do test, or you can send us your rebar, we link it with our rebar coupler, then send back to you, if the test result is bad, we will pay you for the courier charges.

3. Where is your company?

Our company is located between Shanghai and Nanjing China, if you arrive at Shanghai Airport, we are glad to pick up. It will take 2 to 3 hours from the Airport to our company by Car. You are very welcome to visit us!

4. Are you trading company or manufacturer ?

We are manufacturer, you are welcome to visit our factory.

 5.How long is your delivery time?

Generally it is within 5-10 days if the raw materials are in stock. or it is within 15-20 days if the raw materials are not in stock, it is according to quantity.

 6.Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge.

 7.What is your terms of payment ?

A: Payment 100% in advance. Can communicate.

B: All the payment go through Aliababa Onetouch or Alibaba assurance payment.

8. What’s your tensile strength and yield strength?

Our standard rebar couplers can reach tensile strength over 620MPA; and yield strength over 420MPA.

We also can manufacture super strength rebar couplers, just please tell us your requirements.
